EHL launches range of Hydrotest Units

EHL launches range of Hydrotest Units

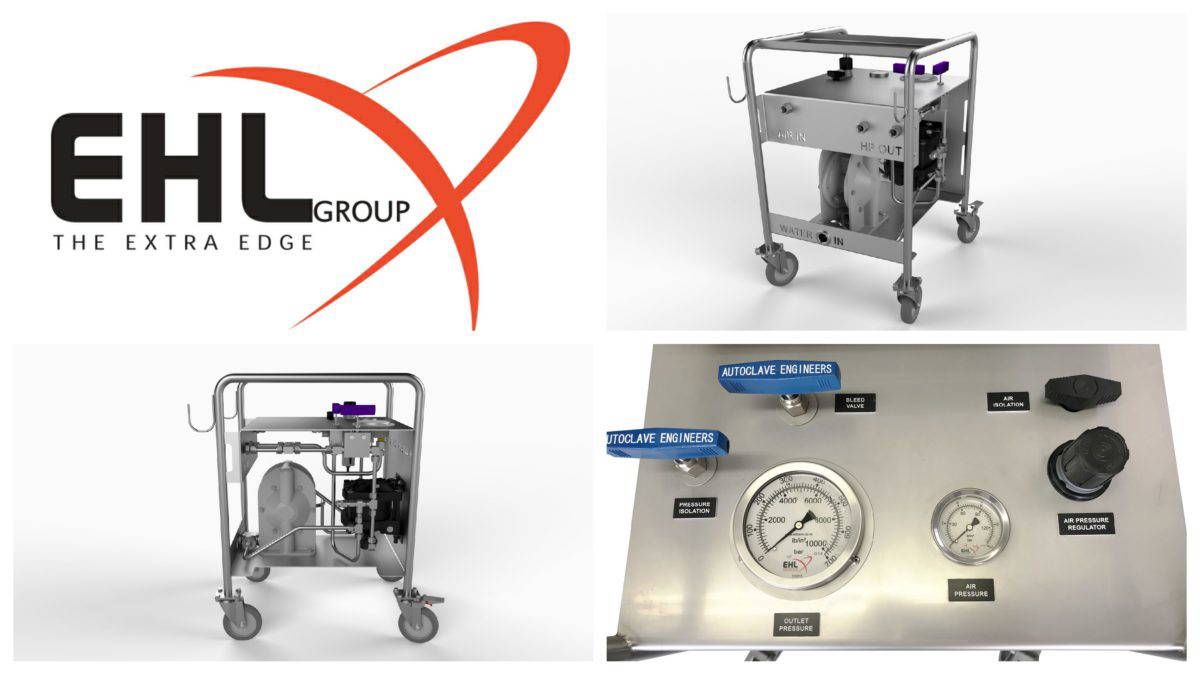

EHL Groups Standard and Customisable Hydrotest units for Hydro-Static Testing

EHL Groups Hydrotest units are fully customisable to suit different applications, with pump configurations and pressure ranges sized to suit customer specifications.

Integrating the Use of CAD design methods has allowed for improved accuracy and detailed mock up process for custom units.

hydro-static test is a way in which hose, pressure vessels, pipelines, plumbing, gas cylinders, boilers and fuel tanks can be tested for strength and leaks.

The test involves filling the vessel or pipe system with a liquid, sometimes water, which may be dyed to aid in visual leak detection, and pressurisation of the item to the specified test pressure. Pressure tightness can be tested by shutting off the supply valve and observing whether there is a pressure loss. The location of a leak can be visually identified more easily if the water contains a colourant.

Strength is usually tested by measuring permanent deformation of the container. Hydro-static testing is the most common method employed for testing pipes, hoses and pressure vessels. Using this test helps maintain safety standards and durability of a vessel over time. Newly manufactured pieces are initially qualified using the hydro-static test.

Basic Package:

Height: 850mm

Width: 600mm

Depth: 600mm

Full stainless steel construction, custom designed frame.

One air inlet, one water inlet, two high pressure outlets

Max working pressure 6,500psi. Unit comprises of a low pressure and high pressure pump.

For further information on standard or units customised to meet specific applications

Contact EHL Today!
