Sterile Air – What It Is and Why It Matters to You
The compressed air mostly just seen as a utility in the production process is critically important to both your production process, your product, the health of both your employees and customers, and finally your business. In this blog EHL Group provide an overview of compressed air filtration and why, in any food and beverage application, the need for sterile air is critical.
Ask the question: “What is the job of the air filters in your food and beverage plant?” and you will typically hear dirt or dust removal in the answer. Some more informed users might even suggest oil and water aerosol removal.
Although these are correct answers, arguably the most important contaminate when air is directly or indirectly contacting food product is the removal of airborne microorganisms. These microscopic entities might be entirely harmless, or they may be life threatening if certain conditions are present. By coincidence, an air compressor produces this “certain” environment of moisture, heat, and oil to that allows many organisms to thrive. Since it impossible to know at all times what organisms are present inside a compressed air system, it is of utmost importance to implement good manufacturing processes that protect both the processor and customer. Ambient air typically contains up to 3,850 micro-organisms per 0.76m3.
There are a many organisations that put forth standards, recommendations, and best-practices to mitigate risk of product spoilage due to microorganism contamination. Following are EHL Group’s recommendations to best protect yourself, your product, and your consumers: filtration, sterilization, monitoring and maintaining.
FILTRATION
Pre-Filtration
Contaminants naturally present in the ambient air are concentrated by the compressor, creating large concentrations of particles and bacteria that are very challenging to filter. On top of this, the mechanical action of the compressor introduces even more particles and oil aerosols that must be removed from the air. As the air cools in the receiver tank, it will usually become 100% saturated with water vapour forming condensation. This condensation is carried downstream in small aerosolised droplets that will overwhelm and damage both refrigerated and desiccant dryers if not removed with an entrainment separator and coalescing pre-filter. EHL can recommend both Cyclone Separators and a Coalescing filters for this pre-filtration phase.
Drying
After leaving the pre-filters, the air has been treated to remove air/oil aerosols and particles >1-5 microns in size.
However, the air is still saturated, and any cooling will form condensation.
Over time, the condensate will lead to significant costs including corrosion and freezing. The liquid water and oil interface also provides those certain conditions for supporting bacterial colonization.
It is easier and safer to stop the growth of microorganisms than it is to trap them after the fact. The two most common ways to reduce the water and oil vapour concentration are to either cool the air with a refrigerated dryer, or adsorb the vapour with an adsorption dryer. EHL Group recommends the use of a heatless regenerative desiccant dryers and in particular – the Donaldson Ultrapac Smart. This dryer uses a hygroscopic adsorbent material that renews itself through a heatless regeneration process. Significant operational cost savings are realised that refrigerated dryers and heat-regeneration dryers cannot match. Further, the Ultrapac Smart contains within a single small footprint, both a pre-filter to protect the desiccant from contamination, and an after-filter to protect downstream equipment. (also available in full Oil Free Pack (OFP) to < ISO8573-1 Class 1)
It is worth noting that a pressure dewpoint of -26oC or better will not only prevent corrosion in downstream lines or equipment, but will also inhibit the growth of micro-organisms within the compressed air system
Point-of-Use Filtration
(Example: Donaldson DF series, P-EG series, PG-EG series)
Now that the air is relatively clean and free of aerosolised water/ oil and larger particles, it is ready for final filtration before the air contacts the product itself or a product contact surface. Point-of-use filtration is important since the previous filtration is not designed to remove bacteria at an absolute retention rate. In addition, there could be pipe scale or contaminate between the pre-filters and the point-of-use filter. Kinetic energy is proportional to the square of the velocity, so even small particles can possess enough energy to damage and disarm a sterile air filter at high air velocities. EHL recommends using a Donaldson M- or S- grade coalescing filter and an activated carbon filter. The activated carbon filter will adsorb several compounds (e.g. hydrocarbon vapour, perfume, citrus, sulphuric acid, toluene, and methanol) that could affect the smell or flavour of the final product.
Lastly is the sterile air filter itself. EHL recommend Donaldson’s Sterile Air filter that has been engineered specifically to remove over 99.99998% of bacteria sized contaminant.
An accepted industry standard ASTM F838 uses Pseudomonas Diminuta (ATCC 19146) as the challenge organism having a 0.3 microns average diameter. A sterile grade filter will produce a sterile filtrate when challenged with 1.0×107 bacteria per cm2.
This is important in part because filter manufacturers sometimes rate their sterile filters at 0.01 microns. The science of filtration shows that it is actually easier for most filters to capture 0.01 microns than 0.2 microns, which is why Donaldson rates its sterile elements at 0.2 microns. Donaldson’s P-SRF Sterile Air element is equal or greater than 99.99998% efficient at removing particulates 0.2 microns and smaller.
STERILISATION
(Example: Donaldson P-GS and P-GSL N steam filters)
So far, two methods of controlling microorganisms have been explained. Drying removes the water that is necessary for life. Filtering removes the oil bacteria feed on and the bacteria themselves. As long as the bacteria stay in the filter, and as long as the air supply at the point-of-use is dry, the bacteria are inactive spores. However, under certain conditions, bacteria can re-activate. In such a case, the bacteria can grow through the filter media and reach a downstream product or process.

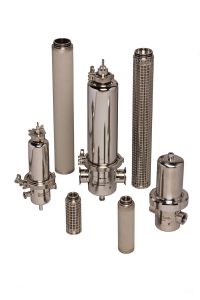

One way to protect against the risk of bacteria grow through is to steam sterilise or autoclave the sterile air filters. The heat from these processes creates irreversible, intracellular reactions that permanently disable microorganisms. Since steam is commonly available in installations to sterilise lines and tanks, it is convenient to use this steam for the sterilisation of filters and housings. Saturated steam is ideal for filter sterilisation because it gives up its heat at a constant temperature, and this heat is used to denature the intracellular proteins of microorganisms and render them inactive. It is just as important to filter the steam itself. EHL offers two different types of steam filters to produce culinary steam – the Donaldson sintered stainless steel P-GS filter and the pleated stainless steel P-GSL N filter.
MONITORING
The sterile air element will not create a differential pressure to notify when a filter change out is necessary. It is important to periodically take and log measurements to detect the presence of microbial contamination. One method is to conduct integrity tests of the sterile air elements.
The type of sterile air filter used will determine the type of test used to check the filter integrity. For depth filter elements (e.g. P-SRF and P-SRF V), filters can be integrity tested using an aerosolized oil dispersion test. For membrane filters (e.g. PF-PT), integrity is checked using either bubble-point of diffusive flow tests. These test methods should be used for all point-of-use filters to verify that the air in direct or indirect contact with food is clean and safe.
MAINTAINING
Over many hours of use, filters become plugged with contaminate. The media undergoes tremendous stresses and at some point the filter integrity may be compromised. Choosing the proper arrangement of sequential series filters will greatly reduce the blocking tendency, better protect sterile filter integrity, and lead to significant savings through lowered maintenance costs over time.
EHL Group’s specialist team can recommend filter change out intervals that will ensure your process is protected if preventative maintenance schedules are adhered to. The protection of your process, your customer, and your company’s reputation just might depend upon it.
Contact your EHL Group representative for more information
