Dimensions:
- Length overall (including pulpit) – 22.77 m (74’9″)
- Length of hull – 22.10 m (72’6″)
- Length of waterline – 19.75 m (64’9″)
- Beam – 5.85 m (19’2.5″)
EHL Work Undertaken:
- Welds repaired and double braced with inner patch supports welded into the inside of the skin

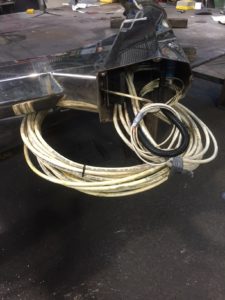

- All Davits were stripped apart and Hydraulics serviced
- Replaced all Hydraulic hoses feeding two internal Hydraulic cylinders per Davit – One to move the winch in and out the boom, the second cylinder moved a guard/support in and out and the third section of hydraulics was a Hydraulic brake on the winch raise and lower and the hydraulic motor which drives the winch drum up and down
- The winch motor (Hydraulic and the winch rope drums) run along a T-Bar inside the davit using linear bearings mounted onto the bottom of the carriage which the motor and winch spool is mounted on to
- Tested and checked all cylinders
- Tested and checked both brakes and both winch motors
- Replaced all hoses
- Full Hydraulic function test, set up and commissioning
- Re assembled and refitted to the Yacht
Contact EHL for further information on how our team of experience technicians and engineers can assist .
